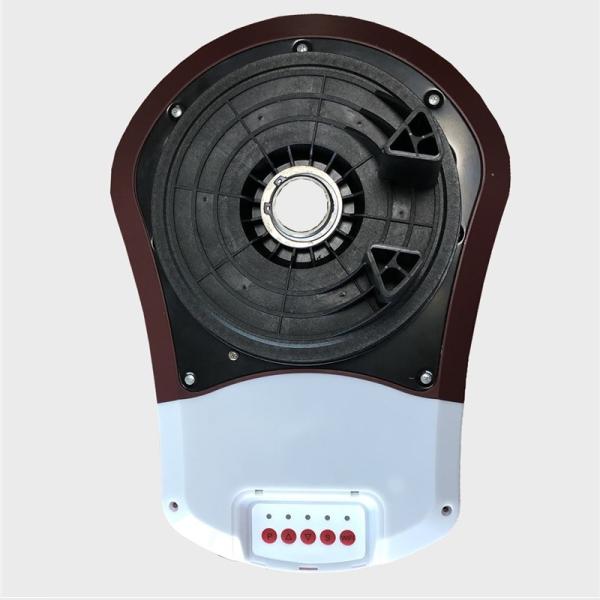

800N Australian Rolling Garage Door Openers , Remote Control Side Rolling Door Opener

Product Categories

Shenzhen ZhongTian Door Co.,Ltd

Contact Now

Brand Name : ZT

Model Number : ZTRD

Certification : CE

Place of Origin : CHINA

MOQ : Negotiation

Payment Terms : T/T

Supply Ability : 30000 sets per month

Price : Negotiable

Material : Plastic, metal

Color : Red, grey

Function : operate Australian rolling up door

remote control code : rolling code

Frequency : 433.92MHZ

Contact Now

Australian rolling door opener.

roller garage door opener

Rolling door opener
TECHNICAL SPECIFICATION
INPUT VOLTAGE :
	(110V AC 60Hz available on request)
	Single Phase
	Current Required	1Amp
TRANSFORMER SPEC.:	Primary Voltage	230/240V AC
	Secondary Voltage	24V AC/100VA
MOTOR SPEC.:	Motor Type	PermanentMagnet D.C.Motor
	Voltage	24V DC
	Torque	150kg cm at 4 Amps

CONTROL BOARD SPEC.:	Relay Contact Rating	12Amp/30V DC
	Relay Coil Voltage	24V DC
	Control Board Voltage	24V DC 5 Watts
Receiver SPEC.:	Receiver Type	FSK AM
	RE Frequency	433.92MHz
	Code Storage Capacity	20 Different Codes
	Control Distance	>50m
TRANSMITTER SPEC.:	Carrier Frequency	433.92MHz
	Current Consumption	50mA(approx)
	Battery Voltage	12 Volts
	Coding Format	Rolling Code(7.38x1019Code Combinations)
OPENER LIFTING CAPACITY : 50kg

800N Australian Rolling Garage Door Openers , Remote Control Side Rolling Door Opener
